Temtop PMD 331 Innovative Handheld Particle Counter for Air Quality Measurement Temtop PMD 331 Innovative Handheld Particle Counter for Air Quality Measurement

5 reviews
5 Stars
40% (2)
4 Stars
60% (3)
3 Stars
0% (0)
2 Stars
0% (0)
1 Star
0% (0)

see all 5 reviews

In stock
$2,580.99 $1,879.99
-27%
$1,879.99
customers are viewing this product customers are viewing this product

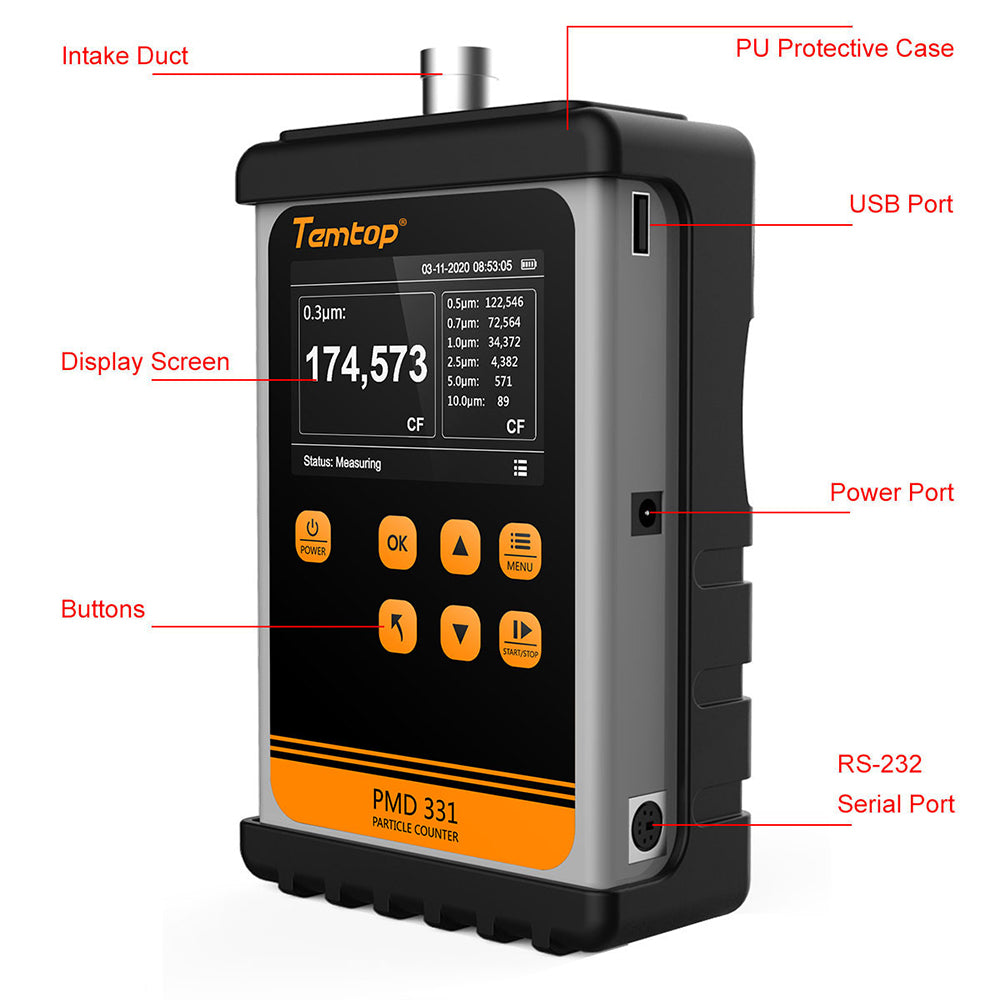

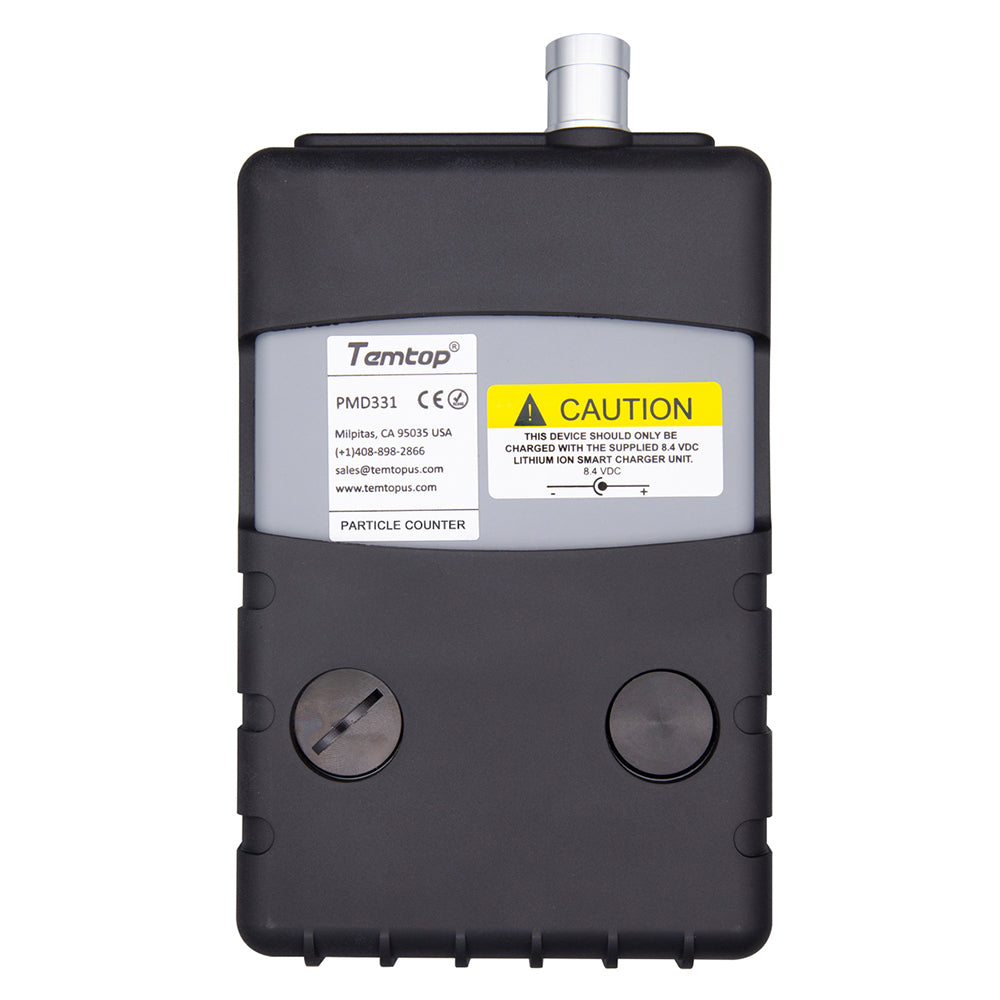

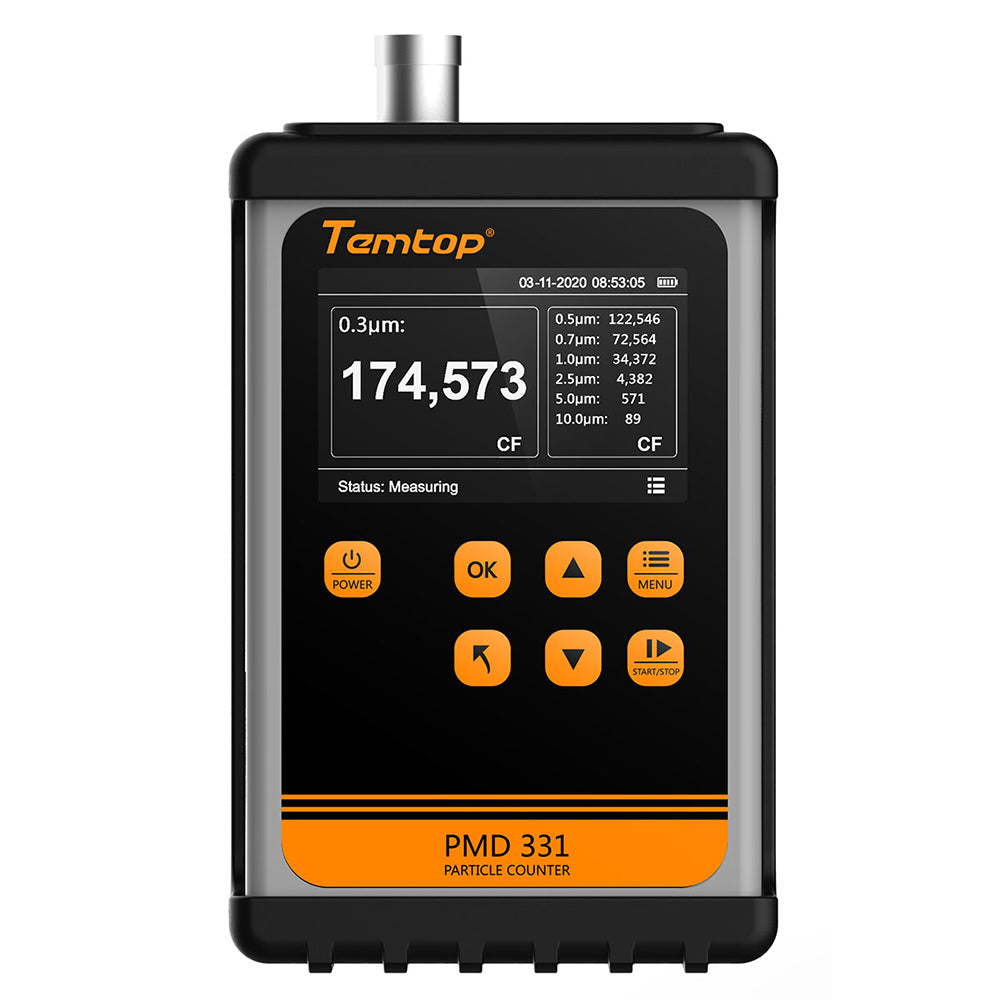

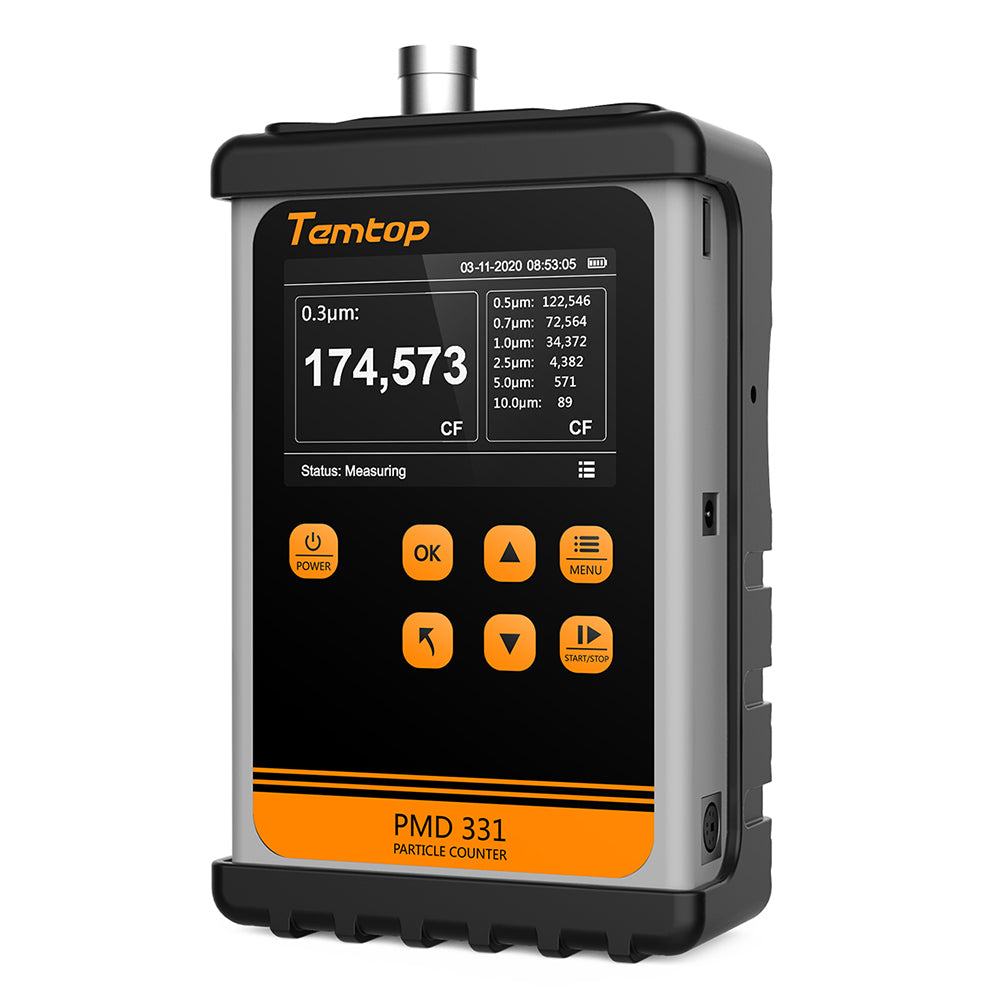

Temtop PMD 331 is an innovative device can measure the 7 mass range simultaneously 0.3μm/ 0.5μm/ 0.7μm/ 1μm/ 2.5μm 5μm/ 10μm. With a TFT LCD large screen and seven front panel buttons making the device very easy to read and operate. The PMD 331 can record up to 2,000.000 readings and operate 8 hours in full charge. The unit has its own calibration mode and export function via USB or RS232.

It also has a wide range of applications such as cleaning rooms. filter testing, IQA investigation, air quality monitoring, etc...

This particle counter is composed of a Laser emitter, Silicon Photocell, Opto-mechanical Structure, Optic, Cutter, Air Pump, Filter Device, and Electronic Circuit.

Technical Specifications
Dimensions:  6.69*4.33*1.97 Inches
Working Principle:  Laser Mie-scattering Principle
Working Temperature Range: 0~50℃
Storage Temperature Range:  -20℃~60℃
Measuring Range:   0~3,000,000 particles/ft³
Accuracy: ±10%
Traffic:  2.83L/min
Laser Emitter: 50mW, 780nm
Sampling Rate:  3~60s
Data Storage: 2,000,000 points
Communication Mode: RS232/USB
Weight:  1.8 lb.
Warranty: 1-year warranty.
User manual:  Download
CE Certificate:  Download
Calibration Certificate: Download


Key Feature
  • Measures 7 mass range simultaneous: 0.3μm 0.5μm 0.7μm 1μm 2.5μm 5μm 10μm in one minute from startup.
  • Easy to Read and Operate: 4" TFT LCD large display for viewing particle data, seven front-panel buttons for controlling a user-friendly, menu-driven platform for easy configuration.
  • Versatile Data Output Options: Stores up to 2,000,000 records and export data via USB port, RS-232 communication mode.
  • Large battery capacity: Continuous 8 hours operation after fully charged.
  • Wide Application: Trusted in HVAC, dust-free workshop, surgical rooms, filter testing, IAQ investigation, air quality monitoring and etc.

What is included
  • Particle Counter x 1
  • Filter Tube x 1
  • USB Flash Drive x 1
  • RS-232 Serial Converter Cable x 1
  • Battery Charger / Adapter x 1
  • AC Power Cord x 2
  • Operation Manual x 1
  • Carrying Case x1
Temtop PMD 331 Innovative Handheld Particle Counter for Air Quality Measurement

Temtop PMD 331 is an innovative device can measure the 7 mass range simultaneously 0.3μm/ 0.5μm/ 0.7μm/ 1μm/ 2.5μm 5μm/ 10μm. With a TFT LCD large screen and seven front panel buttons making the device very easy to read and operate. The PMD 331 can record up to 2,000.000 readings and operate 8 hours in full charge. The unit has its own calibration mode and export function via USB or RS232.

It also has a wide range of applications such as cleaning rooms. filter testing, IQA investigation, air quality monitoring, etc...

This particle counter is composed of a Laser emitter, Silicon Photocell, Opto-mechanical Structure, Optic, Cutter, Air Pump, Filter Device, and Electronic Circuit.

Technical Specifications
Dimensions:  6.69*4.33*1.97 Inches
Working Principle:  Laser Mie-scattering Principle
Working Temperature Range: 0~50℃
Storage Temperature Range:  -20℃~60℃
Measuring Range:   0~3,000,000 particles/ft³
Accuracy: ±10%
Traffic:  2.83L/min
Laser Emitter: 50mW, 780nm
Sampling Rate:  3~60s
Data Storage: 2,000,000 points
Communication Mode: RS232/USB
Weight:  1.8 lb.
Warranty: 1-year warranty.
User manual:  Download
CE Certificate:  Download
Calibration Certificate: Download


Key Feature
  • Measures 7 mass range simultaneous: 0.3μm 0.5μm 0.7μm 1μm 2.5μm 5μm 10μm in one minute from startup.
  • Easy to Read and Operate: 4" TFT LCD large display for viewing particle data, seven front-panel buttons for controlling a user-friendly, menu-driven platform for easy configuration.
  • Versatile Data Output Options: Stores up to 2,000,000 records and export data via USB port, RS-232 communication mode.
  • Large battery capacity: Continuous 8 hours operation after fully charged.
  • Wide Application: Trusted in HVAC, dust-free workshop, surgical rooms, filter testing, IAQ investigation, air quality monitoring and etc.

What is included
  • Particle Counter x 1
  • Filter Tube x 1
  • USB Flash Drive x 1
  • RS-232 Serial Converter Cable x 1
  • Battery Charger / Adapter x 1
  • AC Power Cord x 2
  • Operation Manual x 1
  • Carrying Case x1
