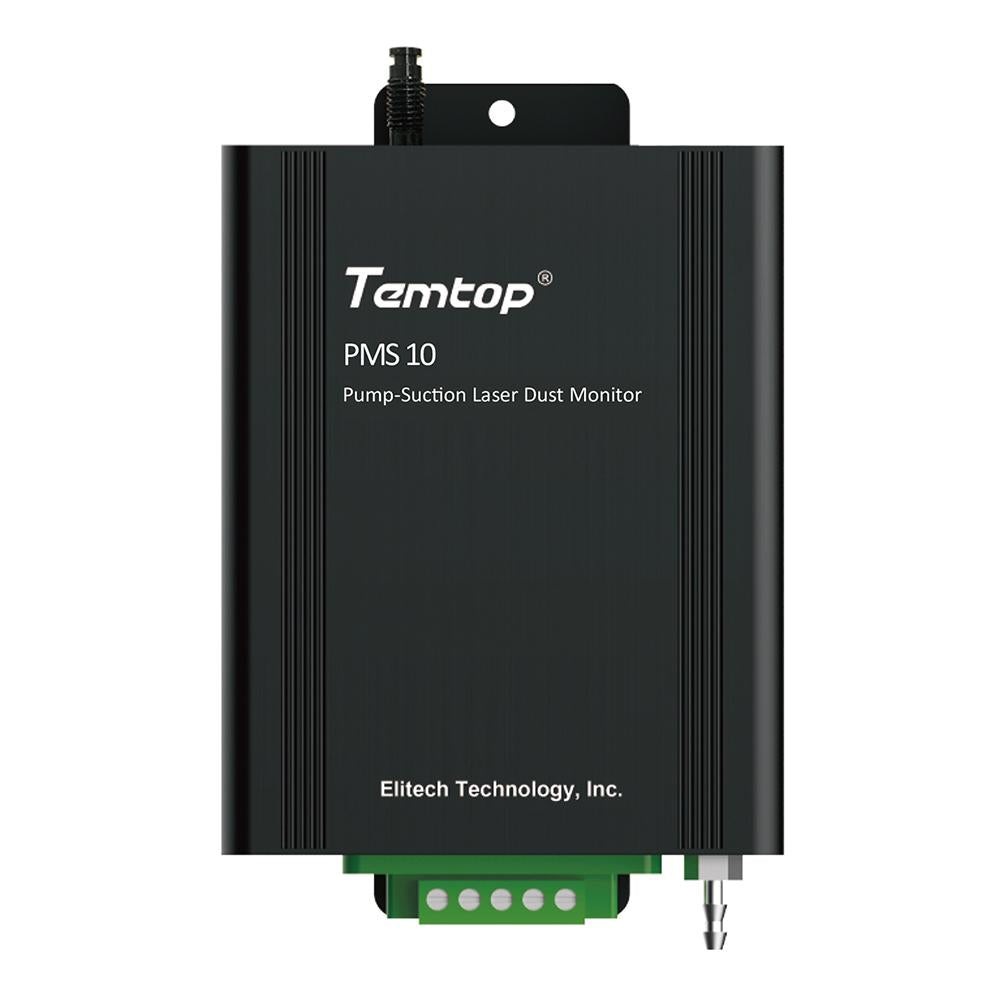

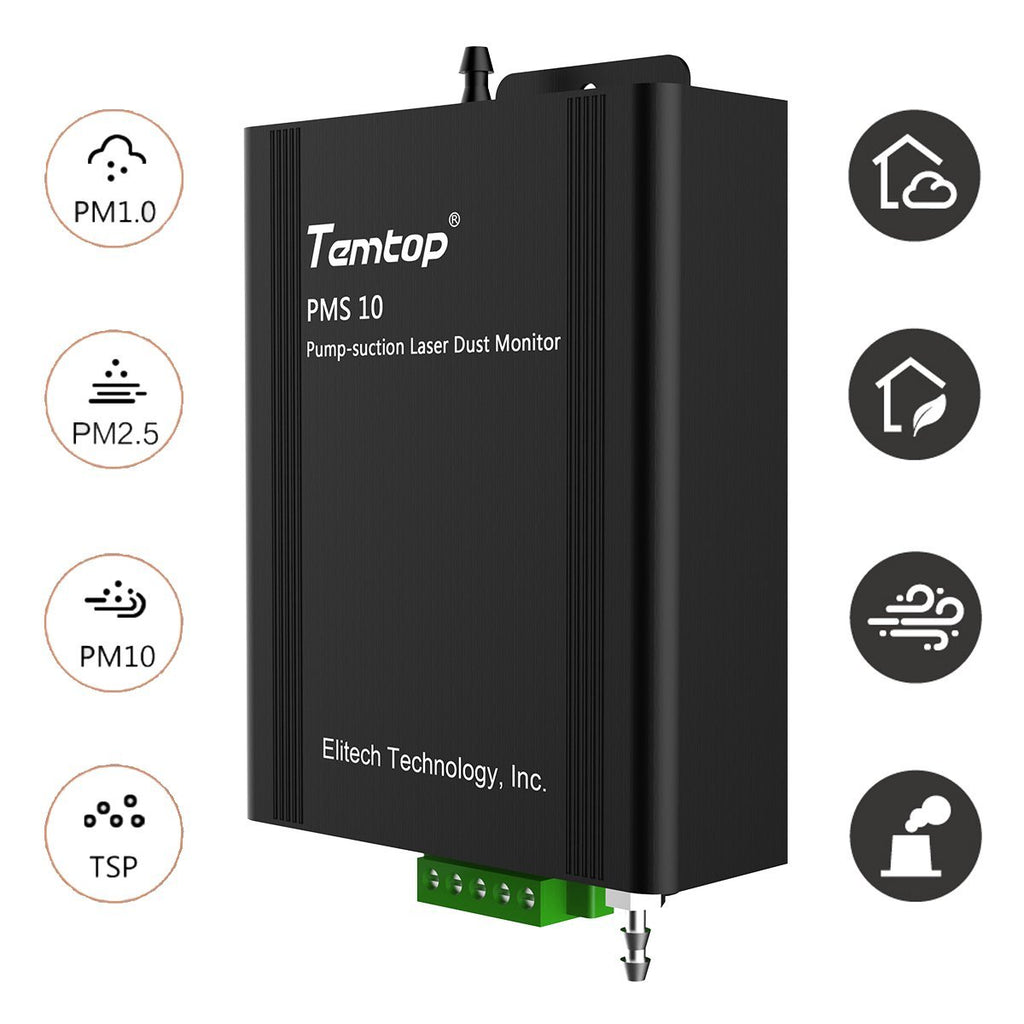

Temtop PMS 10 Pump-Suction Laser Particle Sensor Temtop PMS 10 Pump-Suction Laser Particle Sensor

In stock
$389.99
$389.99
customers are viewing this product customers are viewing this product

PMS10 pump-suction laser particle sensor is a sensor module that uses the principle of laser scattering to detect PM1.0, PM2.5, PM10, TSP, and temperature and humidity in the atmospheric environment. The sensor is made with advanced processing chips and light-sensitive elements. After collected, the signals are processed by a microprocessor and output in the form of a universal digital interface.

The PMS10 can accurately detect the mass concentration of different sizes of particles in the atmospheric environment in real-time.

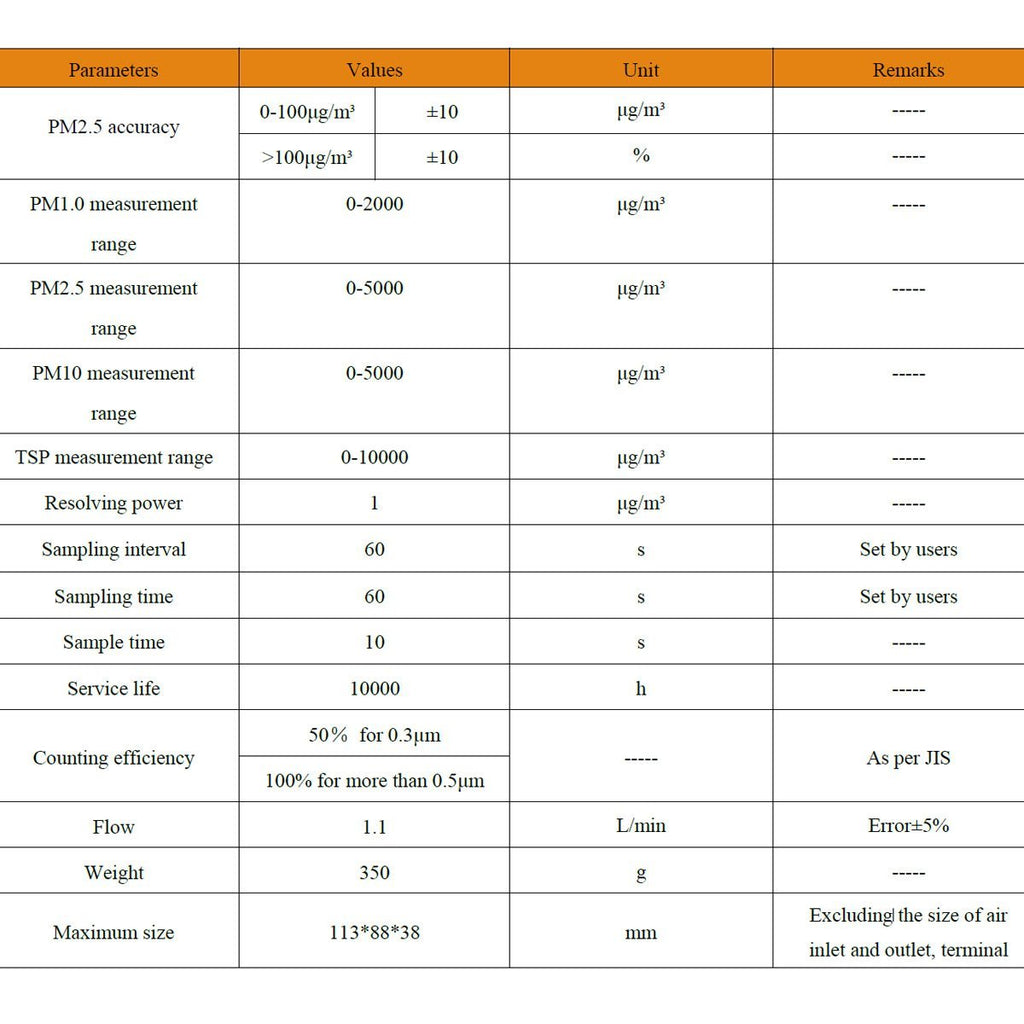

Technical Specifications£º
Dimensions: 4.45*3.46*1.50 Inches
Working Principle: Laser Mie-scattering Principle
Working Temperature Range: 0~50¡æ
Storage Temperature Range: -10¡æ~60¡æ
PM2.5 Measuring Range: 0-5000ug/m3
Flow Rate: 1.0L/min (Standard)(Customize:2.83L/min, about 2 weeks to do customization)
Response time: £¼7s
Sampling Rate: User-defined
Communication Mode: RS485
Weight: 0.8 lb.

Key Feature:
Calibrated with Beta-ray Scattering Detector
Four-wire Vacuum Pump For Higher Sampling Efficiency
All-metal Grounding Light Machine Structure
User-defined Six-channel Particle Size Options

PMS10 pump-suction laser particle sensor is a sensor module that uses the principle of laser scattering to detect PM1.0, PM2.5, PM10, TSP, and temperature and humidity in the atmospheric environment. The sensor is made with advanced processing chips and light-sensitive elements. After collected, the signals are processed by a microprocessor and output in the form of a universal digital interface.

The PMS10 can accurately detect the mass concentration of different sizes of particles in the atmospheric environment in real-time.

Technical Specifications£º
Dimensions: 4.45*3.46*1.50 Inches
Working Principle: Laser Mie-scattering Principle
Working Temperature Range: 0~50¡æ
Storage Temperature Range: -10¡æ~60¡æ
PM2.5 Measuring Range: 0-5000ug/m3
Flow Rate: 1.0L/min (Standard)(Customize:2.83L/min, about 2 weeks to do customization)
Response time: £¼7s
Sampling Rate: User-defined
Communication Mode: RS485
Weight: 0.8 lb.

Key Feature:
Calibrated with Beta-ray Scattering Detector
Four-wire Vacuum Pump For Higher Sampling Efficiency
All-metal Grounding Light Machine Structure
User-defined Six-channel Particle Size Options
